Packaging Factory

Products

Shelter Fan
W Module

  • Speed ​​adjustment (optional)

  • low noise level

  • Low energy consumption

  • G4 Fiber filter

  • activated carbon filter

  • H13 Hepa Filter

  • Lead separator (optional)

  • IP44 motor protection class

  • Min/Max ambient temperature -25/70°C

  • Lead plating (optional)

  • Bypass system

  • Self flanged case

  • Ease of Maintenance

Artboard 6.png
Artboard 14.png

Accessories

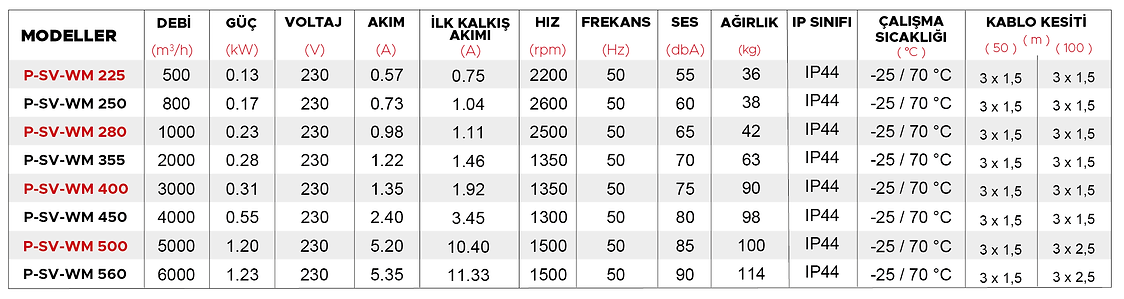

Technical Specifications

Artboard 1.png

Technical Drawing

Artboard 6.png

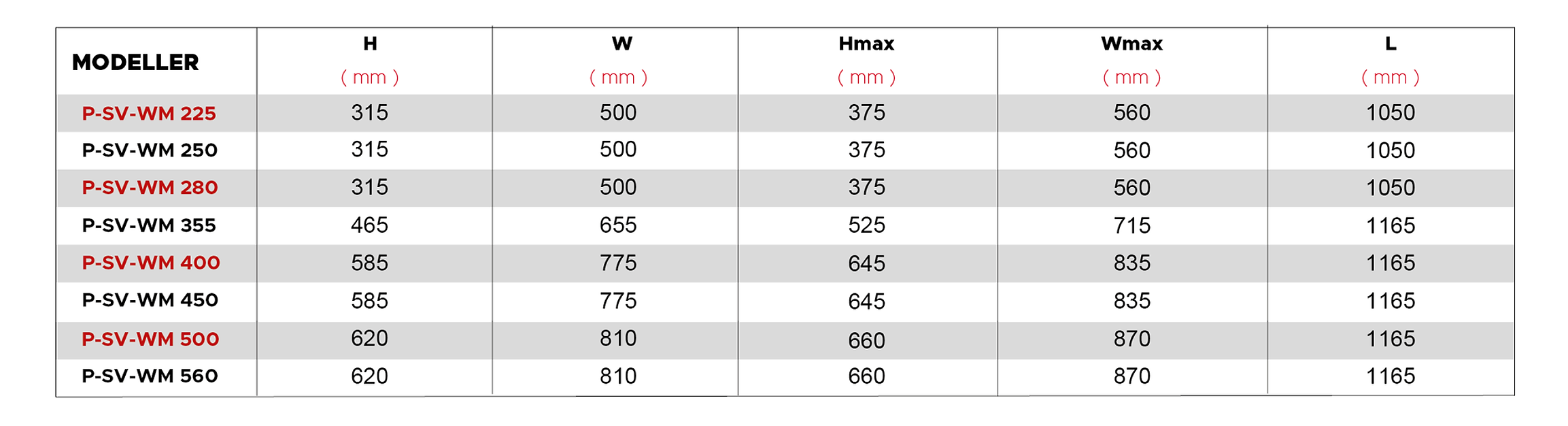

Dimensions

Artboard 2.png

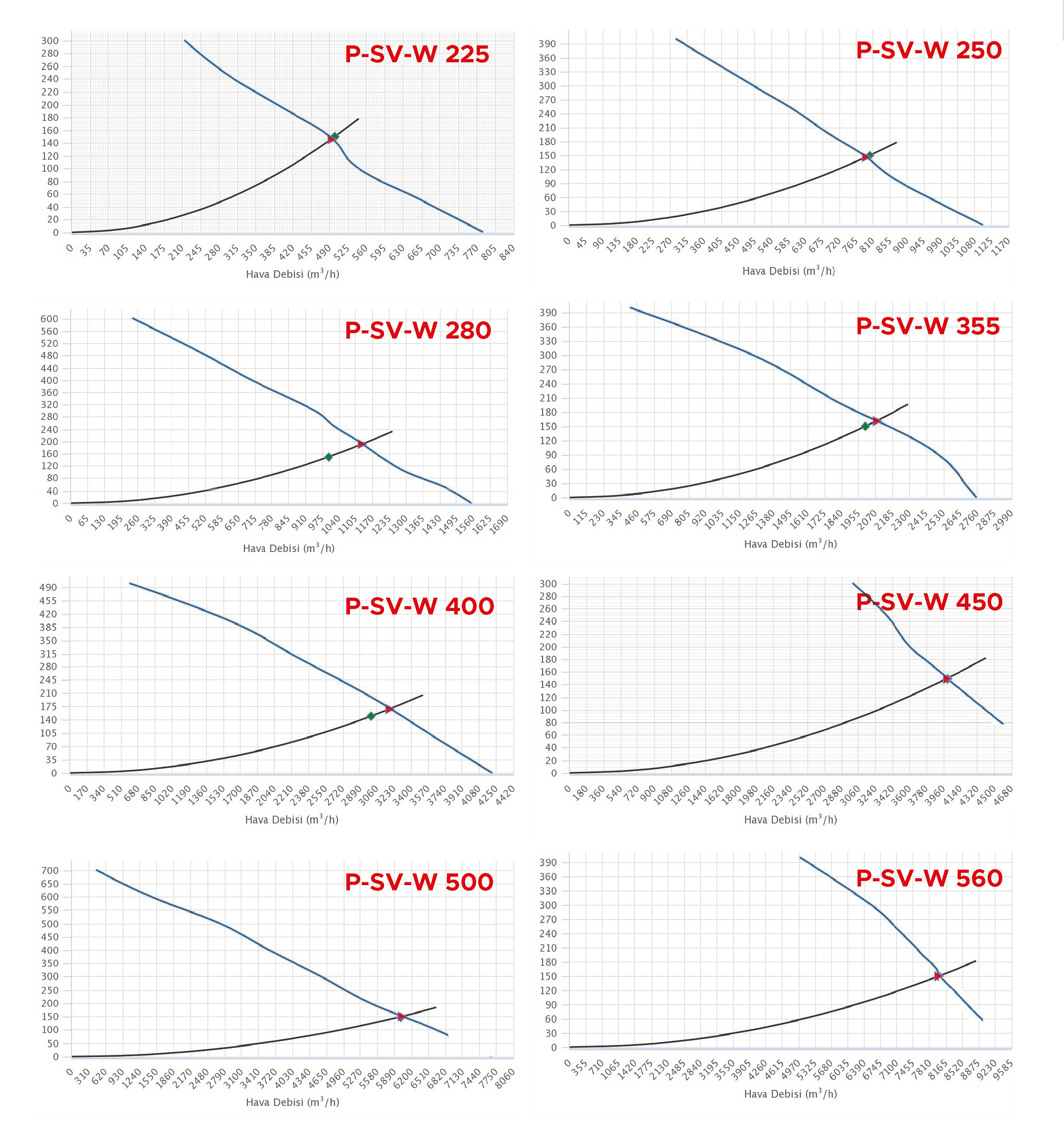

Performance Curves

Artboard 1.png

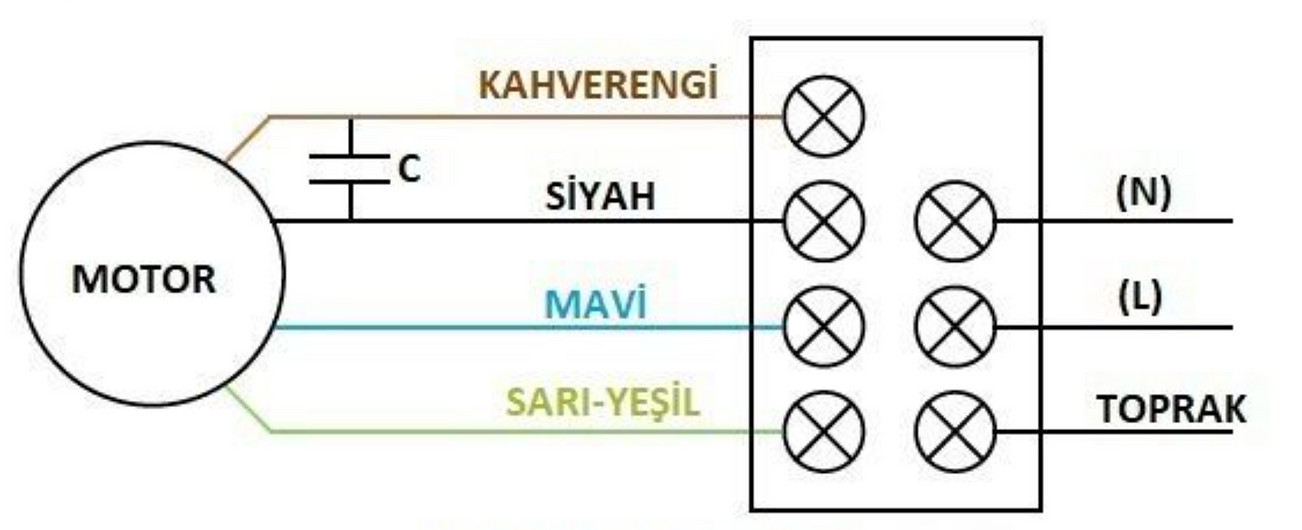

Electrical Wiring Diagram

Screenshot 2025-04-10 16.31.21.png
