Duct Type Fan External Motor

  • Engine out of airflow

  • Speed ​​adjustment (optional)

  • low noise level

  • Low energy consumption

  • IP55 motor protection class

  • Min/Max Ambient temperature -35/120°C

  • Self flanged case

  • intervention cover

  • Easy installation and assembly

Artboard 12.png
Artboard 8.png

Accessories

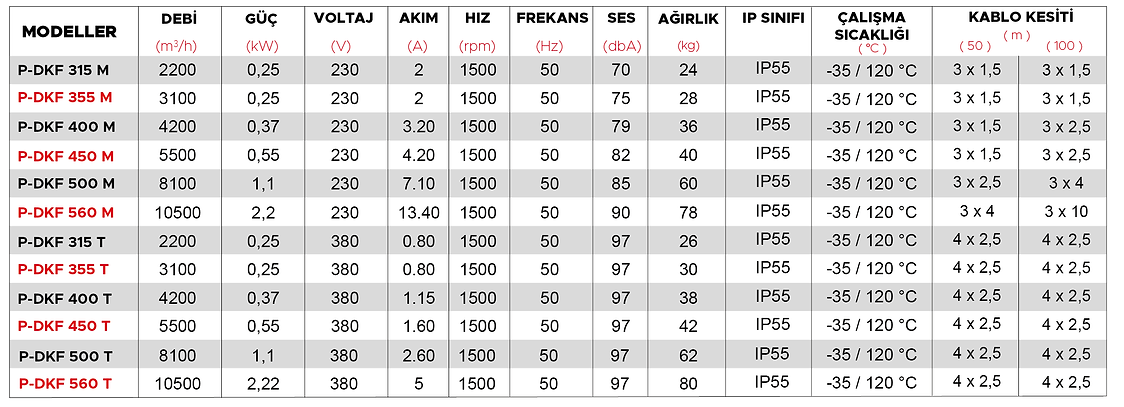

Technical Specifications


Technical Drawing

Artboard 6.png

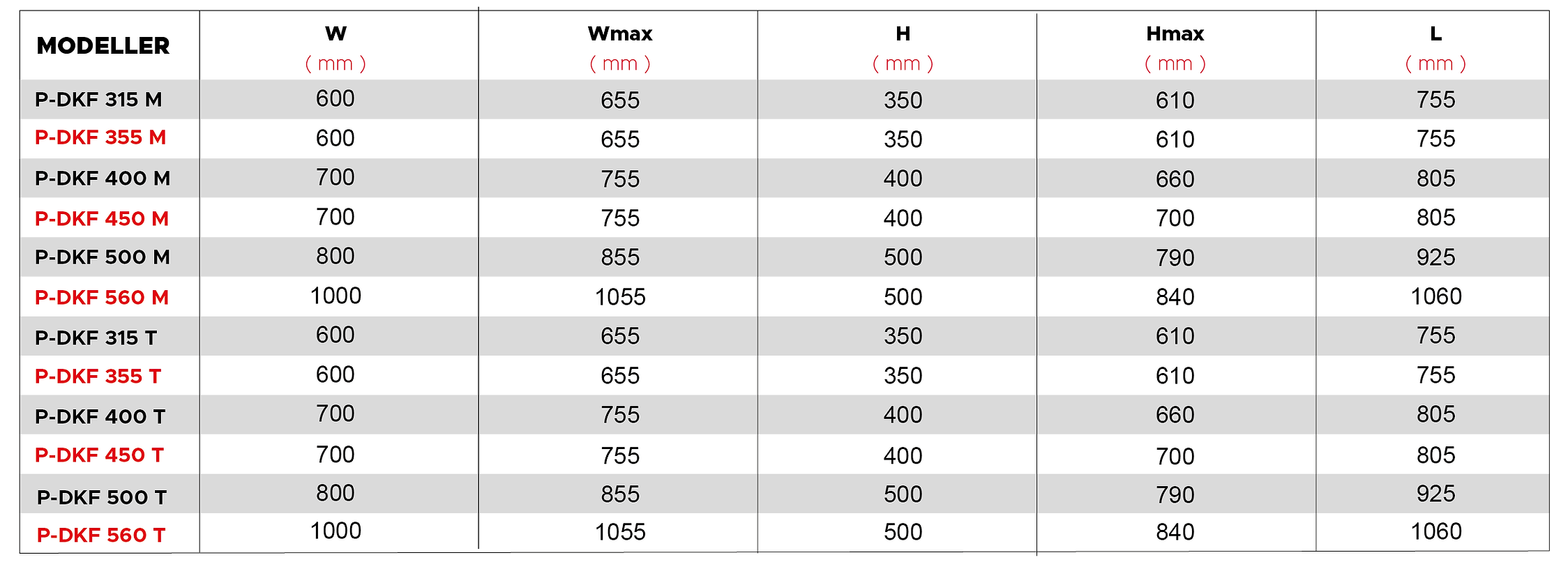

Dimensions

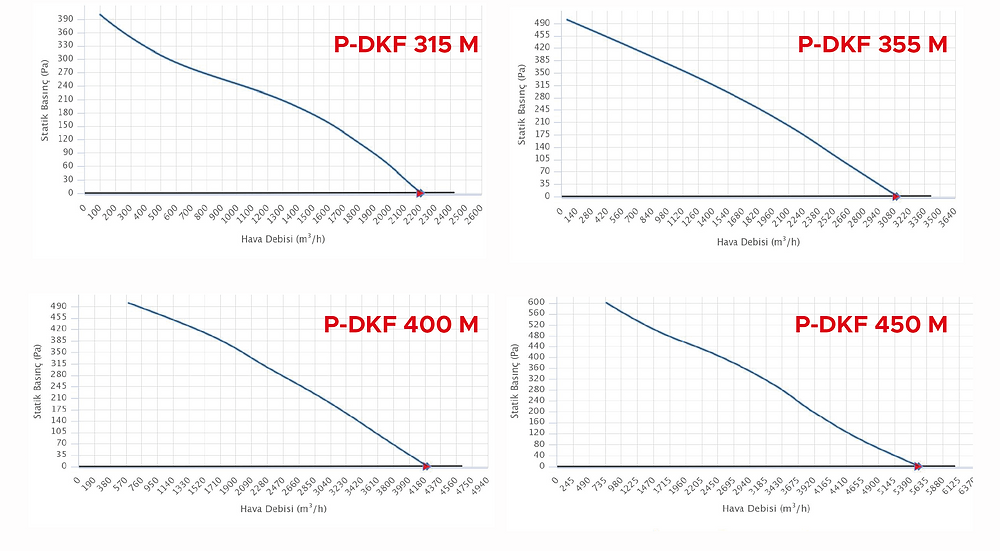

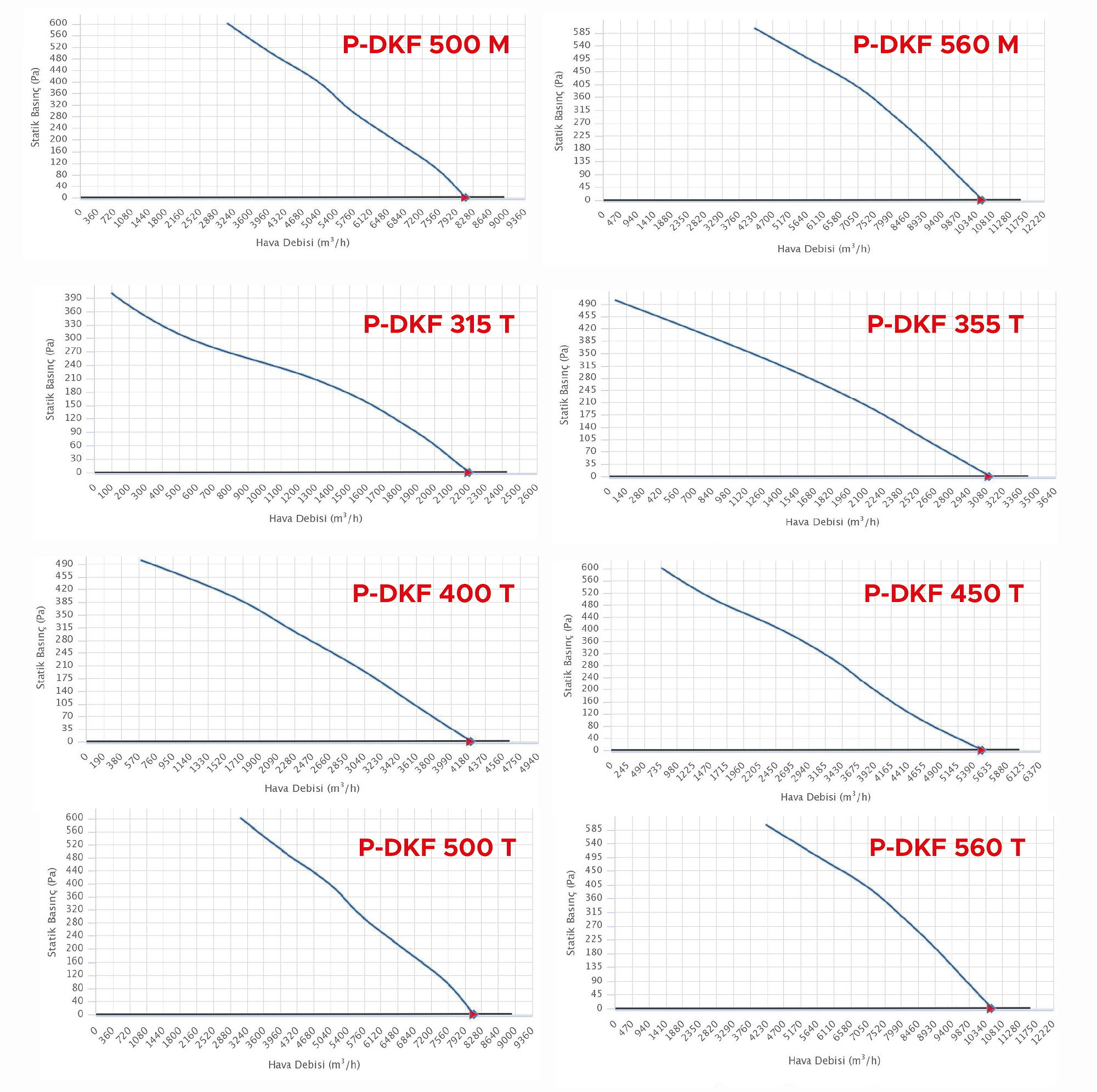

Performance Curves

Artboard 19.png
Artboard 2.png

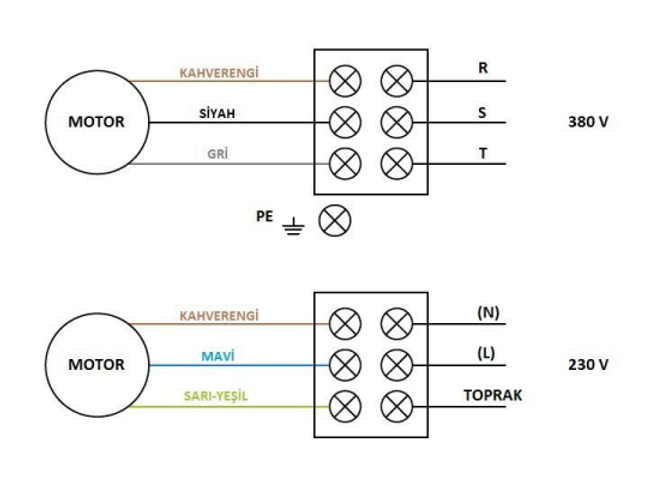

Electrical Wiring Diagram
