Packaging Factory

Products

Radial Roof Type Fan
Horizontal Discharge Outboard Engine

  • Engine out of airflow

  • Speed ​​adjustment (optional)

  • Water proof feature

  • low noise level

  • Low energy consumption

  • IP55 motor protection class

  • Min/Max Ambient temperature -35/120°C

  • Backward curved radial wings

  • Galvanized sheet metal case

  • Easy installation and assembly

Artboard 14.png
Artboard 8.png

Accessories

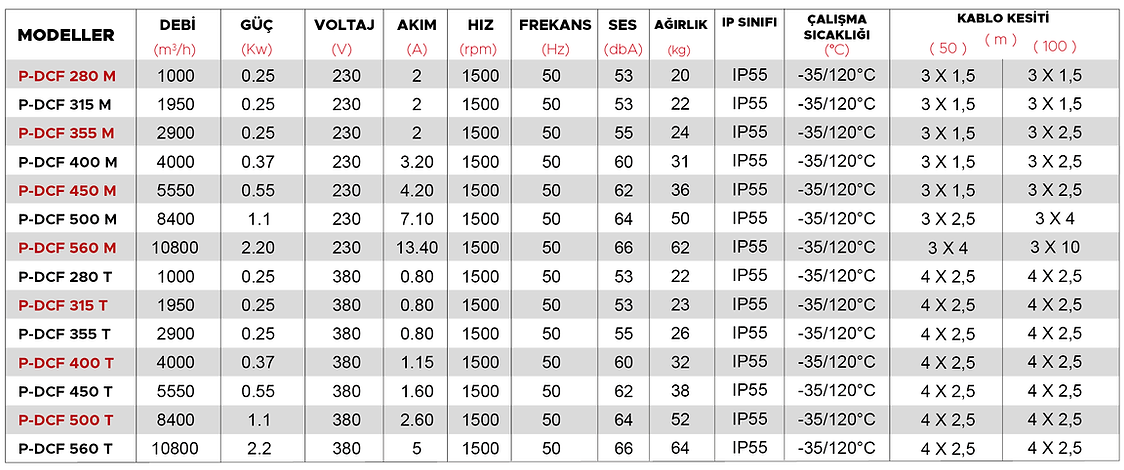

Technical Specifications


Technical Drawing

Artboard 2.png

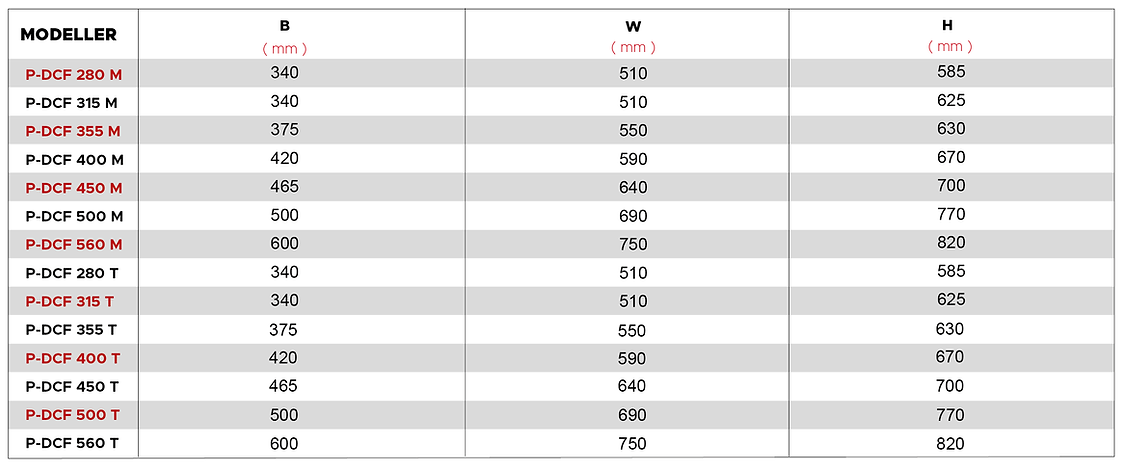

Dimensions

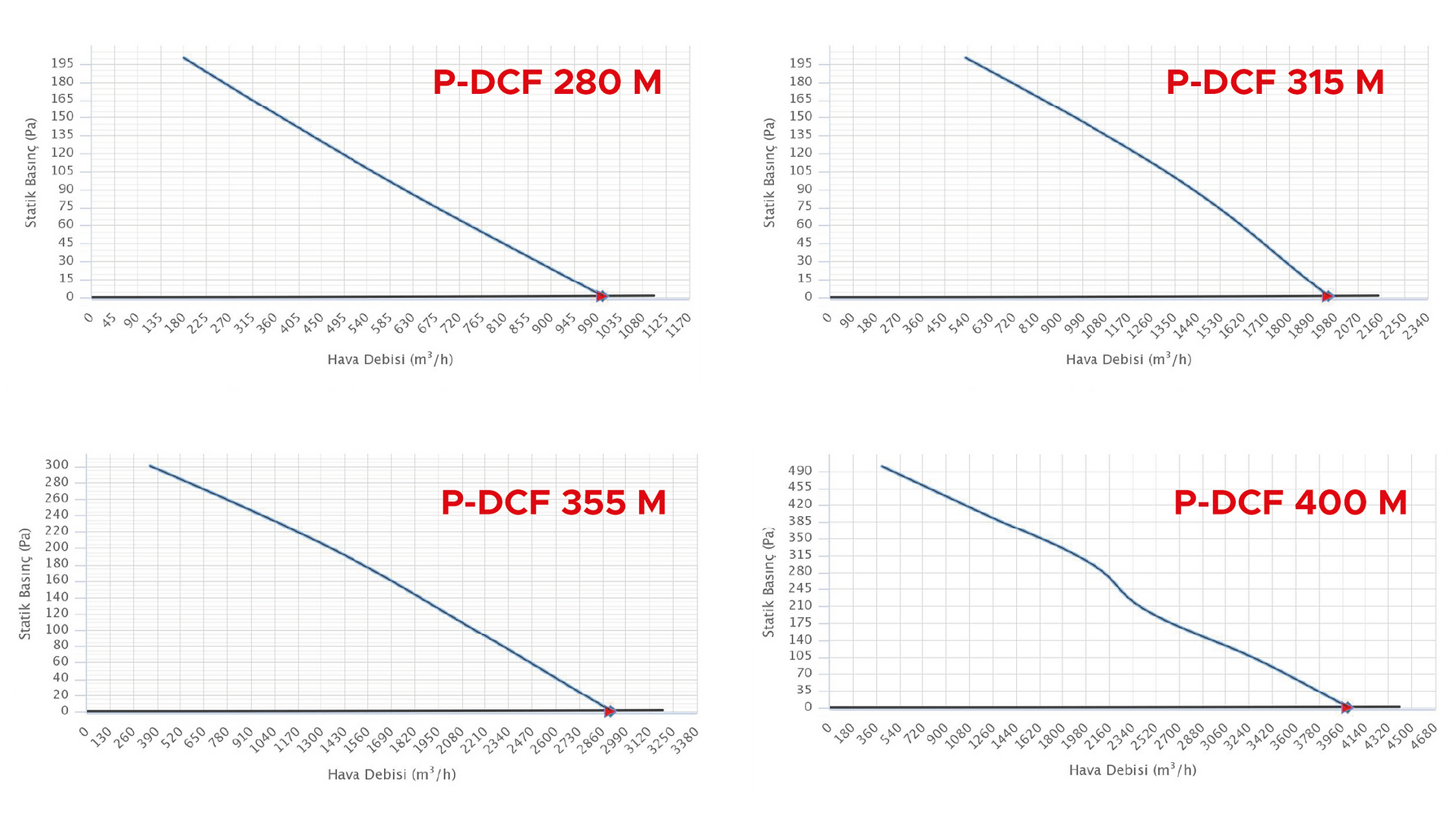

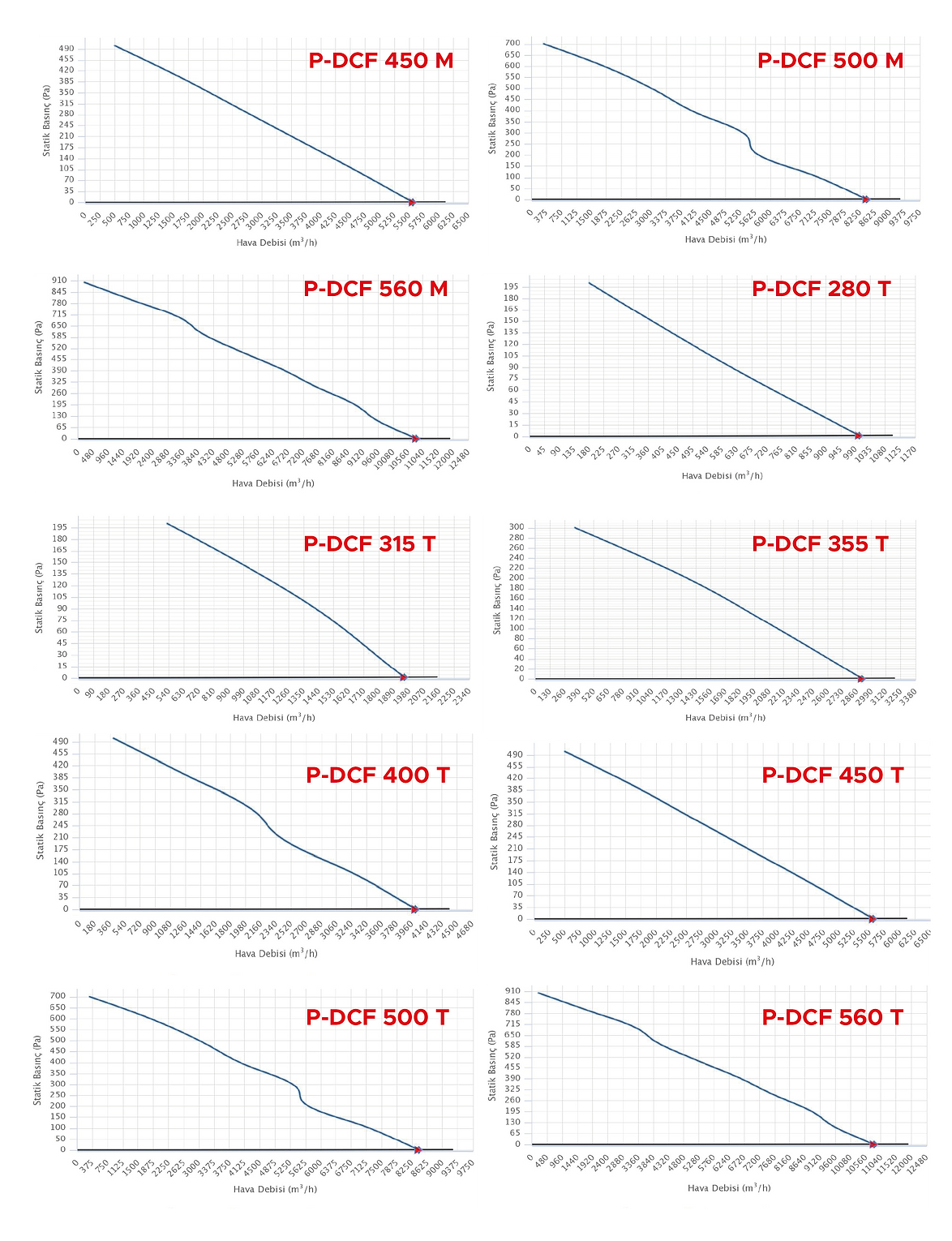

Performance Curves

Artboard 1.png
Artboard 2 copy.png

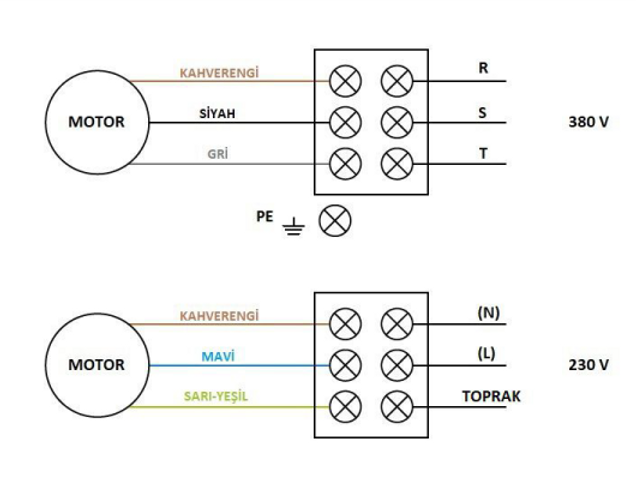

Electrical Wiring Diagram
