Packaging Factory

Products

Radial Roof Type Fan
Horizontal Discharge EC Motor

  • Thermal protection for all self-motorized devices

  • high efficiency

  • low noise level

  • Low energy consumption

  • IP44 motor protection class

  • Min/Max Ambient temperature -25/60°C

  • Backward curved radial wings

  • Reduced turbulence

  • High Pressure

  • Easy installation and assembly

Artboard 14.png
Artboard 13.png

Accessories

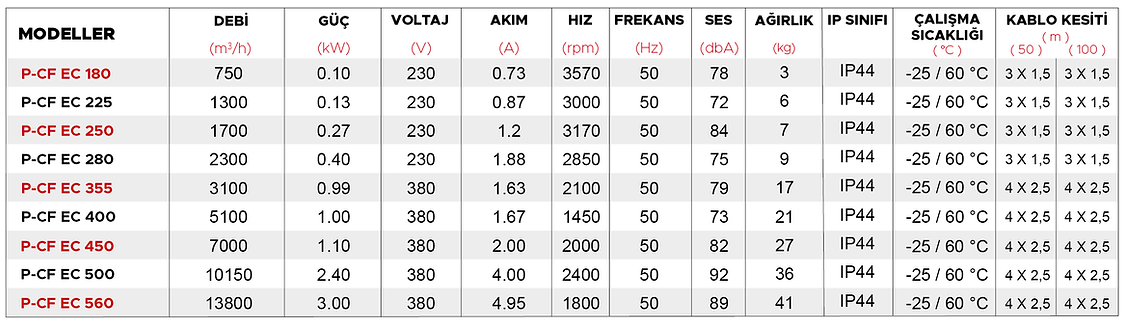

Technical Specifications

CF EC2.png

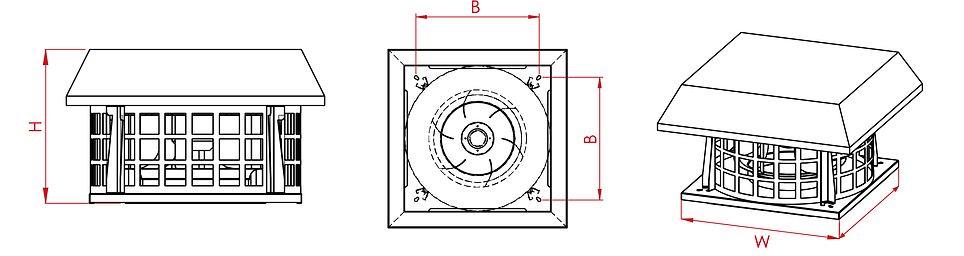

Technical Drawing

CF EC 4.png

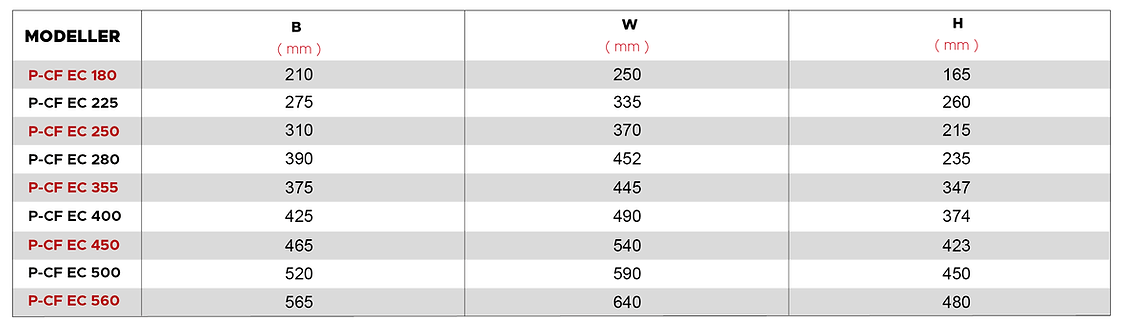

Dimensions

CF EC3.png

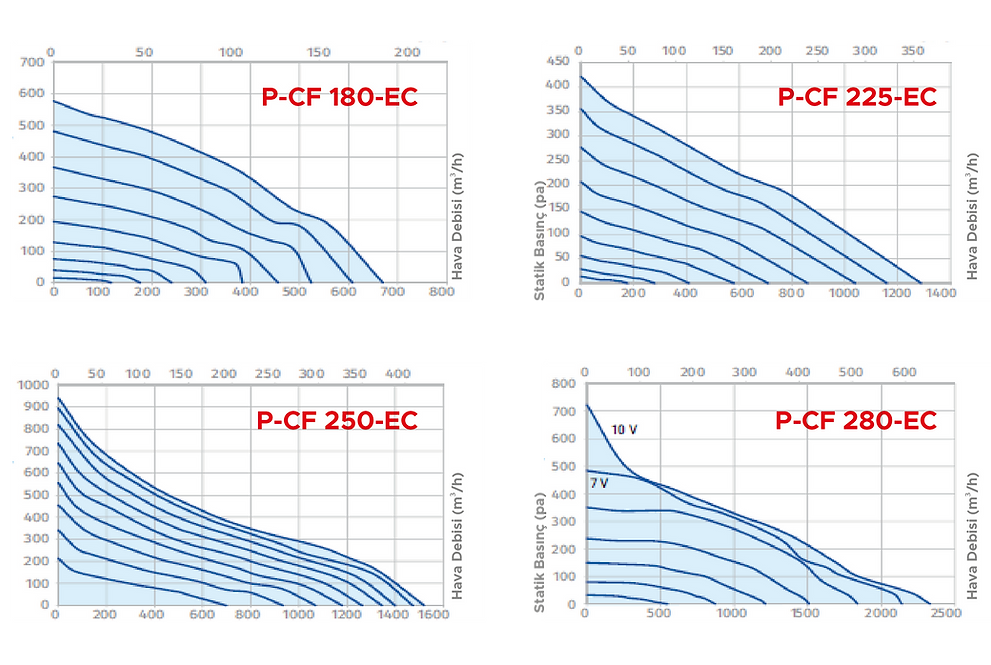

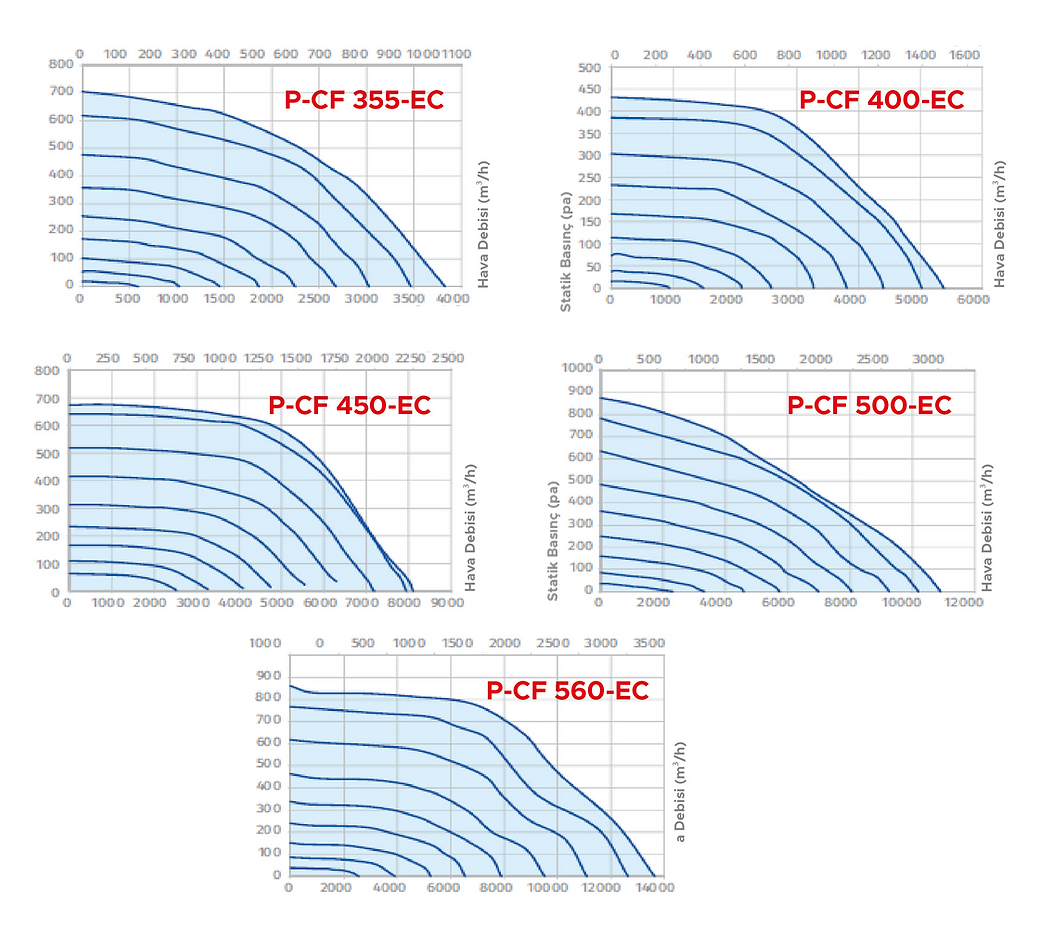

Performance Curves

Artboard 12.png
Artboard 1.png

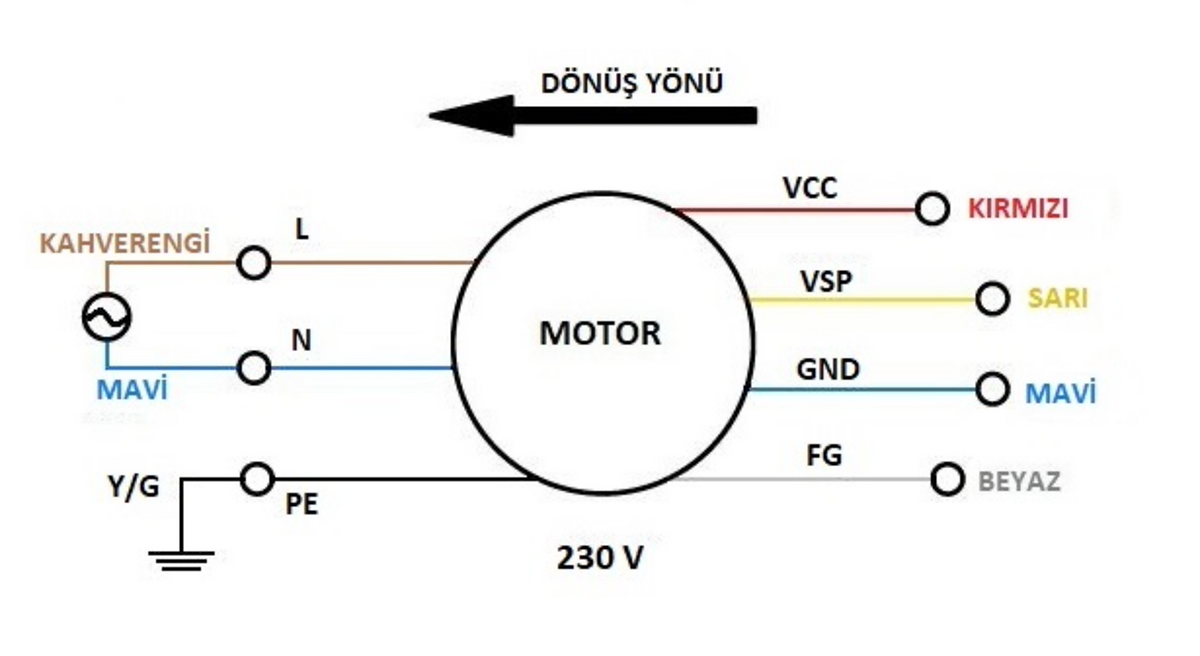

Electrical Wiring Diagram
