Packaging Factory

Products

Shelter Fan
Package Type

  • Speed ​​adjustment (optional)

  • low noise level

  • Low energy consumption

  • G4 Fiber filter

  • activated carbon filter

  • H13 Hepa Filter

  • Lead separator (optional)

  • IP44 motor protection class

  • Min/Max Ambient temperature -25/70°C

  • Lead plating (optional)

  • Bypass system

  • Self flanged case

  • Ease of Maintenance

Artboard 6.png
Artboard 9.png

Accessories

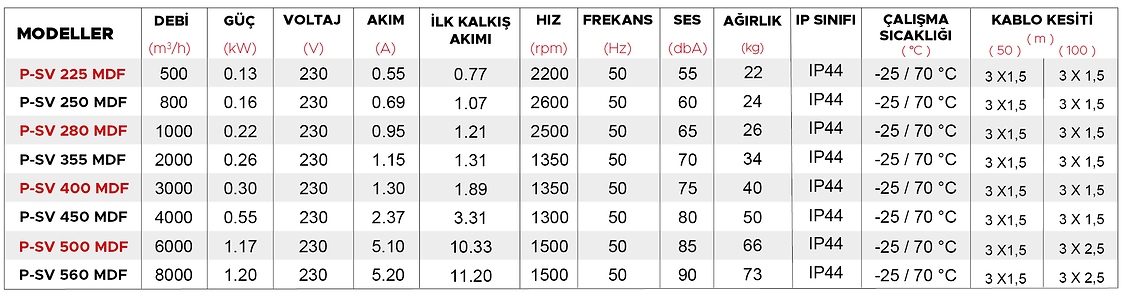

Technical Specifications

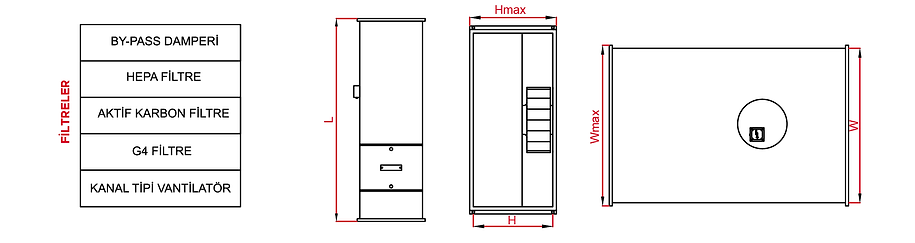

Technical Drawing

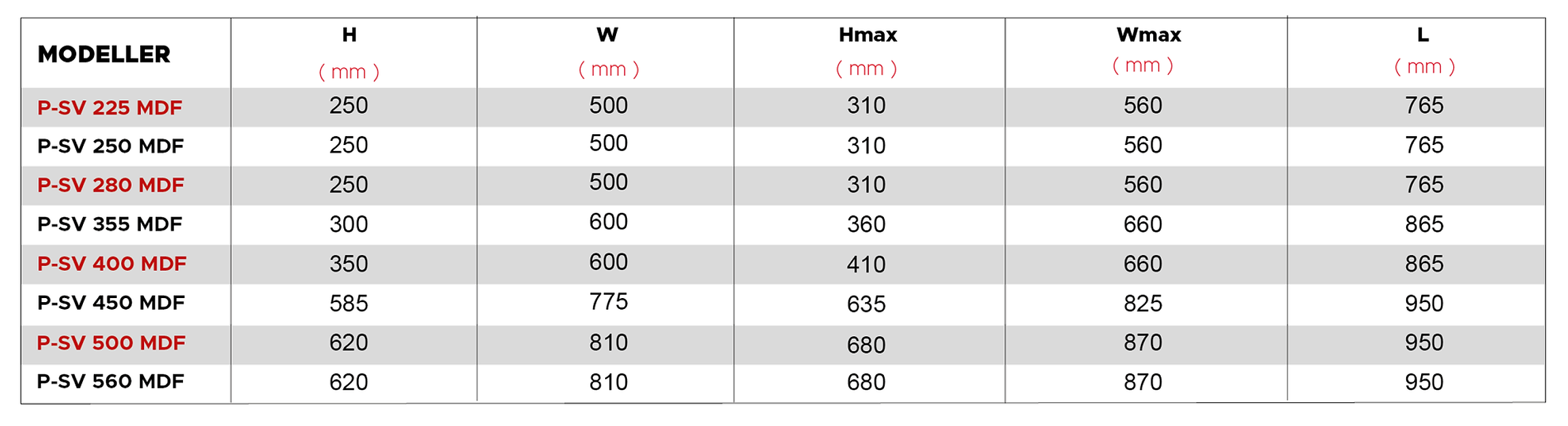

Dimensions

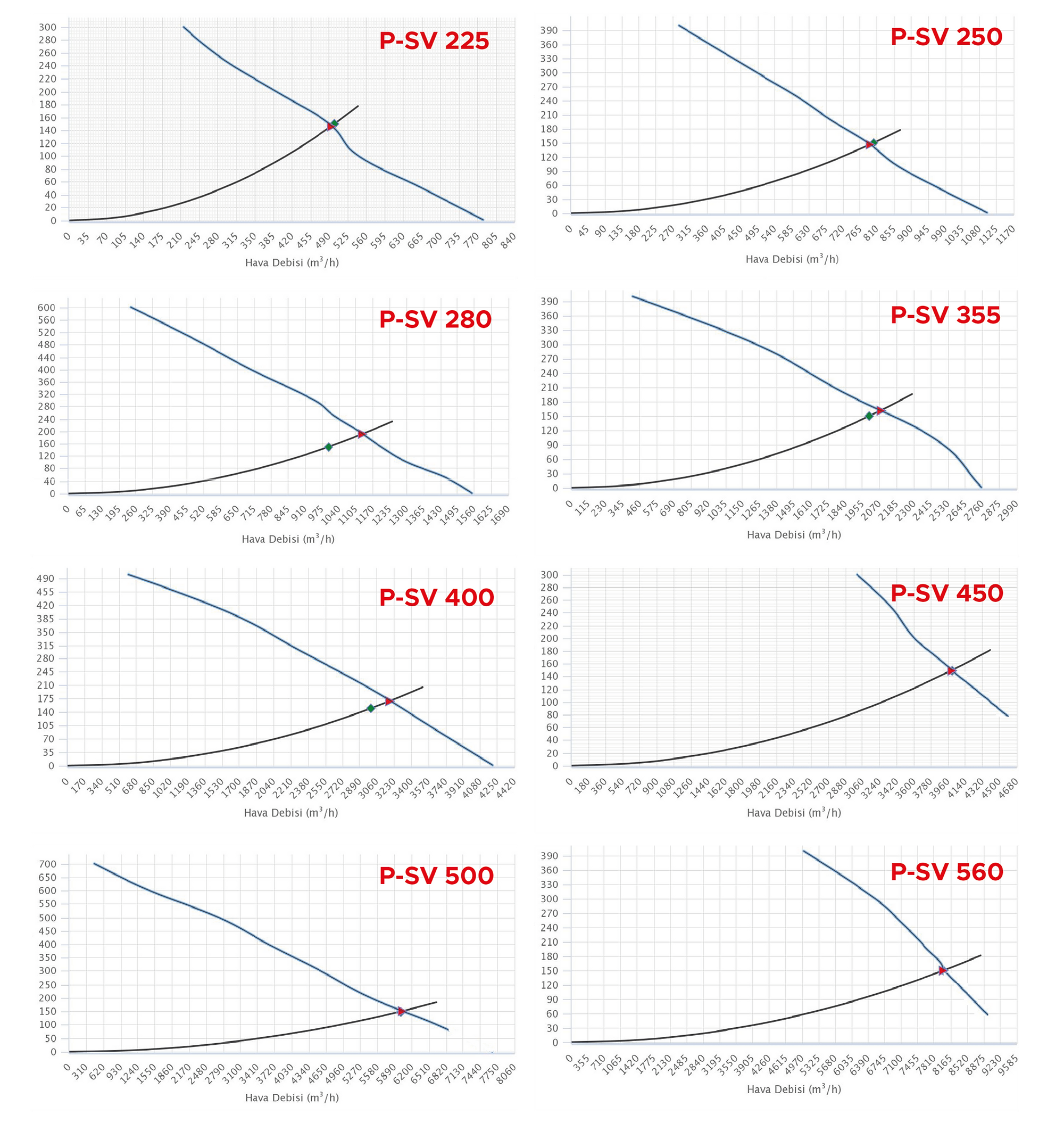

Performance Curves

Artboard 1.png

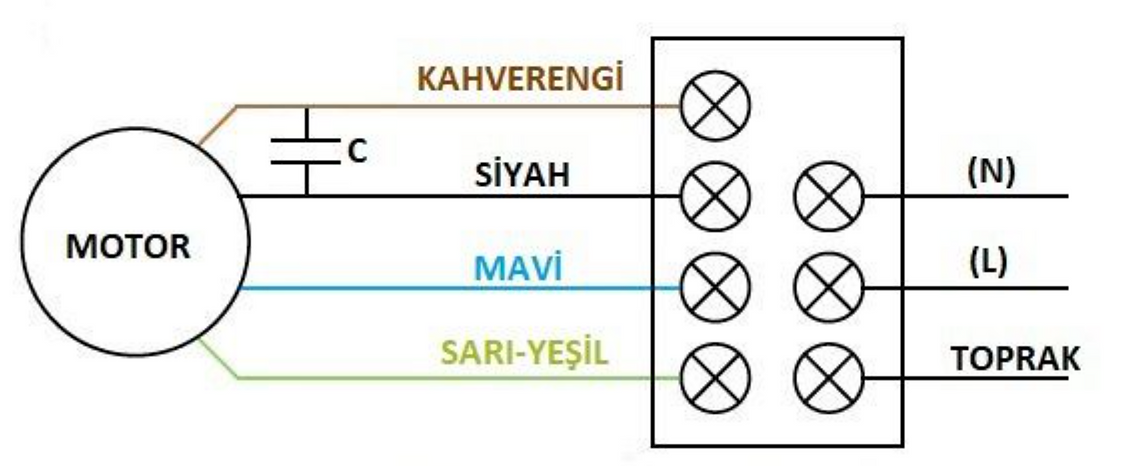

Electrical Wiring Diagram

Screenshot 2025-04-10 14.34.54.png
